Four Tight Gravity Sites


Categories: ,


Here are four design strategies to help you if you require a compact gravity septic design for a too-small lot. In certain areas, especially on older plats, this problem is eternal. The goal, of course, is to fit a large house, plus a garage/or shop, underground utilities, AND the septic system, all within the property lines of a small, tight, urban sized residential lot. You can always lose a parking space or even a room in the house, but the drainfield area is incompressible space, and so is the replacement area.

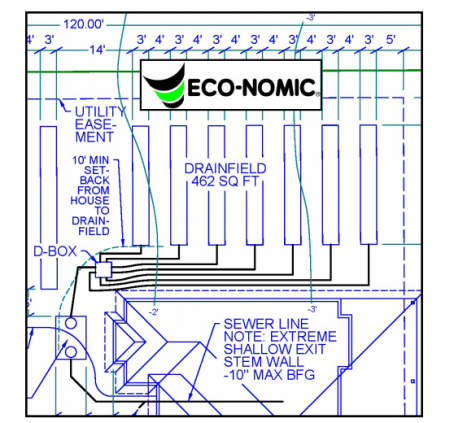

It is a puzzle sometimes fitting the house, parking, driveways, patios, water service, and all of the other common site elements, within and around the septic trenches, without running across someone else’s tracks. Minimum setbacks in these situations are critical. Setbacks must be included between the drainfield, any buildings, the replacement area, property lines and easements. Even the setbacks between individual trenches can make or break your layout plans when every inch or centimeter counts. Study these designs for a few tricks of the trade.
